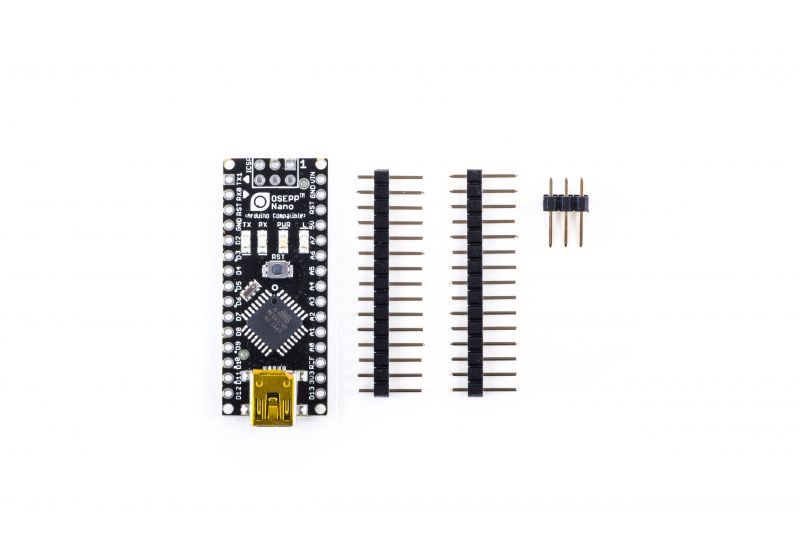

OSEPP Arduino Nano

OSEPP Nano

The OSEPP Nano is a compact, breadboard-friendly version of the popular Uno board, offering similar functionality with a few key differences. Powered by the ATmega328P microcontroller, the Nano features eight analog input pins and is designed for easy integration into small projects. It’s perfect for those looking to work with Arduino libraries in a more compact form factor.

Key Features:

• Microcontroller: ATmega328P
• Clock Speed: 16 MHz
• Flash Memory: 32 KB
• SRAM: 2 KB
• EEPROM: 1 KB
• Operating Voltage: 5V
• Input Voltage: 6-12V
• Digital I/O Pin Count: 14 (includes 6 PWM outputs)
• Analog Input Pin Count: 8
• Other Connections: Mini-USB, Serial communication (requires header), ICSP (requires header)
• Dimensions: 1.73 x 0.71 x 0.31 inches (44.0 x 18.0 x 8.0 mm)
• Power Source: Mini-USB

Highlights:

• 8-bit AVR RISC-based microcontroller running at 16 MHz
• Single mini-USB connector for both power and serial communication
• Breadboard-friendly form factor
• 2 extra analog input pins compared to the OSEPP™ Uno
• Fully compatible with existing Arduino software libraries

Features:

• Preloaded Arduino bootloader on the ATmega328P
• ICSP pins for optional bootloader replacement
• Easy integration with breadboards using soldered 0.100" headers

Availability:

• Stock Code: NAN-01
• Product Name: OSEPP Nano
