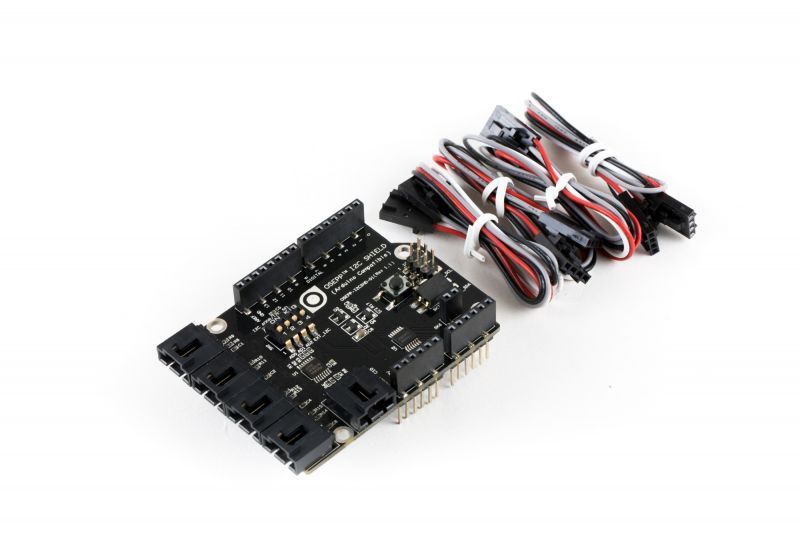

OSEPP I²C Expansion Shield for Arduino

OSEPP I²C Expansion Shield for Arduino – Expand Your I²C Connectivity

The OSEPP I²C Expansion Shield is the perfect solution for connecting multiple I²C devices without address conflicts. This Arduino-compatible shield features a 1-to-4 I²C switch, allowing up to four isolated I²C buses for seamless communication. With robust plug-and-play connectors and stackable design, it simplifies complex I²C setups.

Key Features:

• 1-to-4 I²C Switch – Enables multiple isolated I²C devices without collisions.
• Stackable Design – Compatible with Arduino and other shields.
• Pass-Through I/O – Maintains reset button and ICSP access.
• Selectable I²C Addresses – Supports up to 8 shields (0x70 to 0x77).
• Broad Compatibility – Works with Uno, Mega, Duemilanove, and more.
• Supports 3.3V & 5V Boards – Flexible voltage compatibility.
• Plug & Play I²C Connectors – Simplifies wiring with dedicated power, data, and clock pins.

Specifications:

• Form Factor: 53.3 mm x 68.6 mm
• Power Consumption: 0.1 mW
• Connector Pin Definition:
  • Pin 1: Power
  • Pin 2: I²C Data
  • Pin 3: Ground
  • Pin 4: I²C Clock

Ideal for sensor arrays, robotics, and complex I²C networks! Skip the wait and shop local at Expert PC!
